ABC Strain Clamp

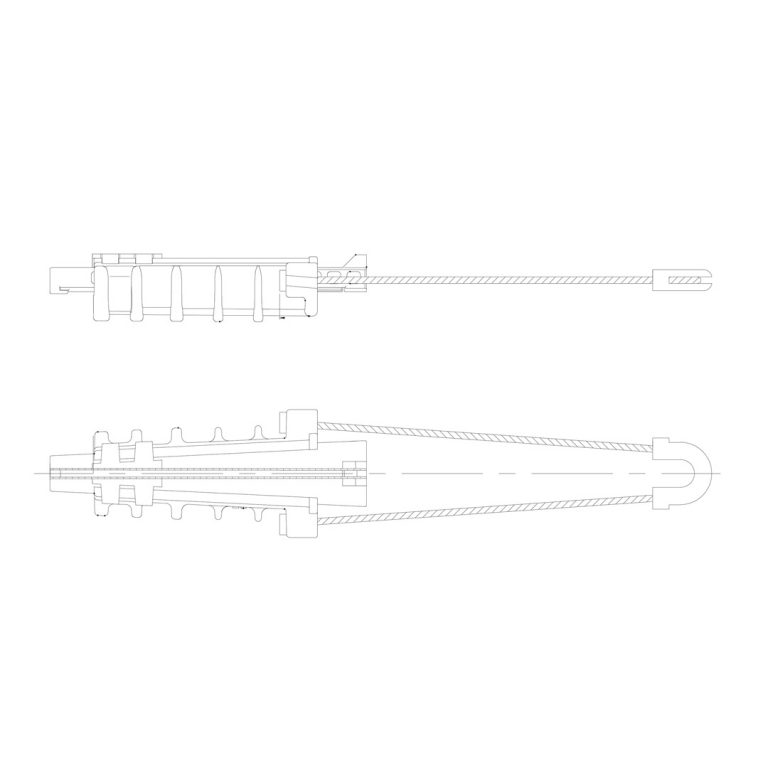

ABC Strain Clamp

The Tension Clamp is used to anchor and tighten ABC lines with insulated neutral messenger.


Usage scenarios

Distribution system

Technical features

They are characterized by high mechanical stability, reduced dimensions for easier handling, and high mechanical and climatic resistance.


Product advantages

  1. The surface is smooth and flat without burrs;
  2. It has a clean appearance, special materials, and a unique design, which can well protect the cable;
  3. Its material is high-quality aluminum alloy, which has strong corrosion resistance and is not easy to rust and aging;
  4. When it is installed, the cable can be easily installed without tools.

Technical details

Type Cross-section (mm²) Breaking Load (kN)
PAL 1000A 16-35 10
PAL 1000 25-70 12
PAL 1500 50-70 15
PAL 2000 70-150 15
PAL90-1500 35-70 12
PAL90-1500A 25-50 12
PA2/35 2*16-35 5
PA4/35 4*16-35 5
KW160 2*16-35 5
KW161 4*16-35 5
PA4/16-35 2*16/4*35 12
KW116 4*16-50 20
NES-1B 4*16*50 20
NES-2B 4*70-120 20
