Armour Rod is a spiral wound on the wire to increase the stiffness and vibration resistance of the wire at the winding location.
Usage scenarios
Transmission line system
Technical features
Rounded head or duckbill at the end of the guard line
Product advantages
| Catalog No. | Suitable
Conductor |
Dimensions
(mm) |
Number | ||
|---|---|---|---|---|---|
| D | d | L | |||
| FYH-95/20 | 95/20 | 3.6 | 11.4 | 1400 | 13 |
| FYH-150/25 | 150/25 | 3.6 | 13.0 | 1400 | 14 |
| FYH-150/25 | 150/25 | 3.6 | 14.2 | 1500 | 16 |
| FYH-185/30 | 185/30 | 4.6 | 15.7 | 1800 | 14 |
| FYH-240/30 | 240/30 | 4.6 | 17.9 | 1900 | 16 |
| FYH-240/40 | 240/40 | 4.6 | 17.9 | 1900 | 16 |
| FYH-300/25 | 300/25 | 6.3 | 19.7 | 2000 | 13 |
| FYH-300/40 | 300/40 | 6.3 | 19.9 | 2000 | 13 |
| FYH-400/35 | 400/35 | 6.3 | 22.3 | 2200 | 14 |
| FYH-400/50 | 400/50 | 6.3 | 23.0 | 2200 | 14 |
| FYH-400/65 | 400/65 | 6.3 | 23.2 | 2200 | 14 |
| FYH-400/95 | 400/95 | 6.3 | 24.8 | 2500 | 14 |
| FYH-500/35 | 500/35 | 6.3 | 24.9 | 2500 | 16 |
| FYH-500/45 | 500/45 | 6.3 | 24.9 | 2500 | 16 |
| FYH-500/65 | 500/65 | 6.3 | 25.7 | 2500 | 16 |
| FYH-630/45 | 630/45 | 7.8 | 27.9 | 2500 | 15 |
| FYH-630/55 | 630/55 | 7.8 | 28.5 | 2500 | 15 |
| FYH-630/80 | 630/80 | 7.8 | 28.9 | 2500 | 15 |
| FYH-720/50 | 720/50 | 7.8 | 30.8 | 3000 | 15 |

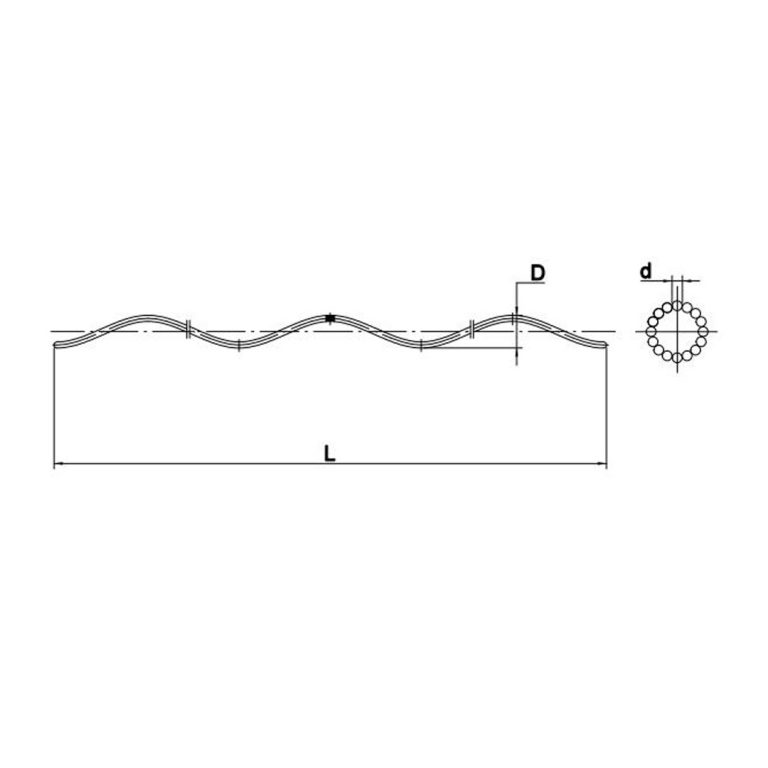

Remark: *D, *d, *L, please refer to related product drawings.
