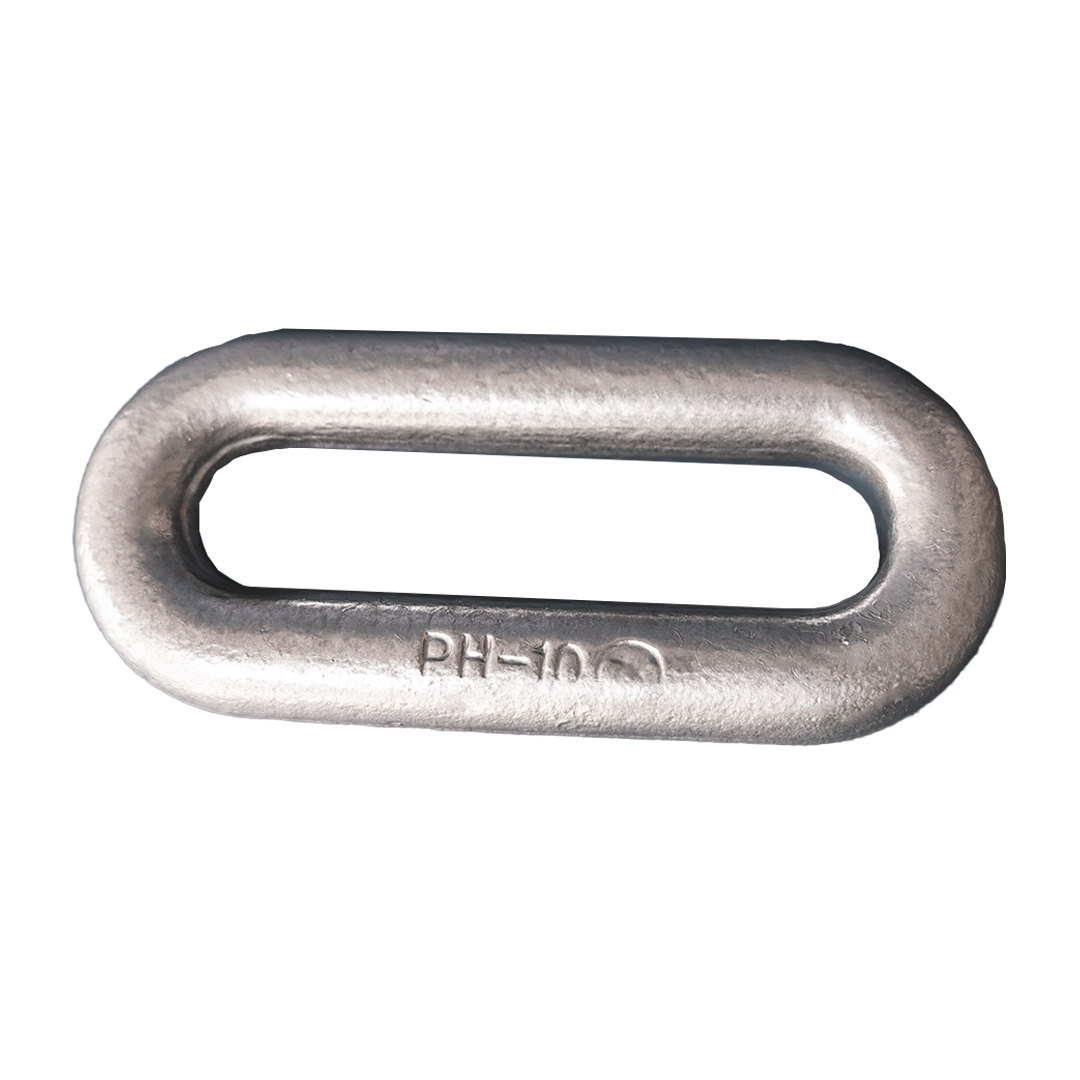

Chain Link

Chain Link is used for the connection of ring fittings to lengthen the connection size or change the connection direction.

Usage scenarios

Transmission line system, communication system

Technical features

The chain link is integrally forged from round steel and bears the mechanical load.

Product advantages

  1. The surface is smooth and free of burrs;
  2. The chain link uses hot-dip galvanizing to prevent corrosion;
  3. The mechanical strength of the chain link is high.

Technical details

Catalog No. Dimensions (mm) Rated Failure Load (kN)
C D L
PH-4 18 14 60 40
PH-7 20 16 80 70
PH-10 22 18 100 100
PH-12 24 20 120 120
PH-16 26 22 140 160
PH-21 30 24 160 210
PH-25 34 26 160 250
PH-30 38 30 180 300
PH-16S 26 20 120 160
PH-21S 26 20 130 210
PH-25S 32 24 120 250
PH-32S 34 28 140 320
PH-42S 40 32 160 420
YH-55160 40 32 160 550
YH-64160 42 36 160 640
YH-84190 48 40 190 840
YH-110190 52 48 190 1100

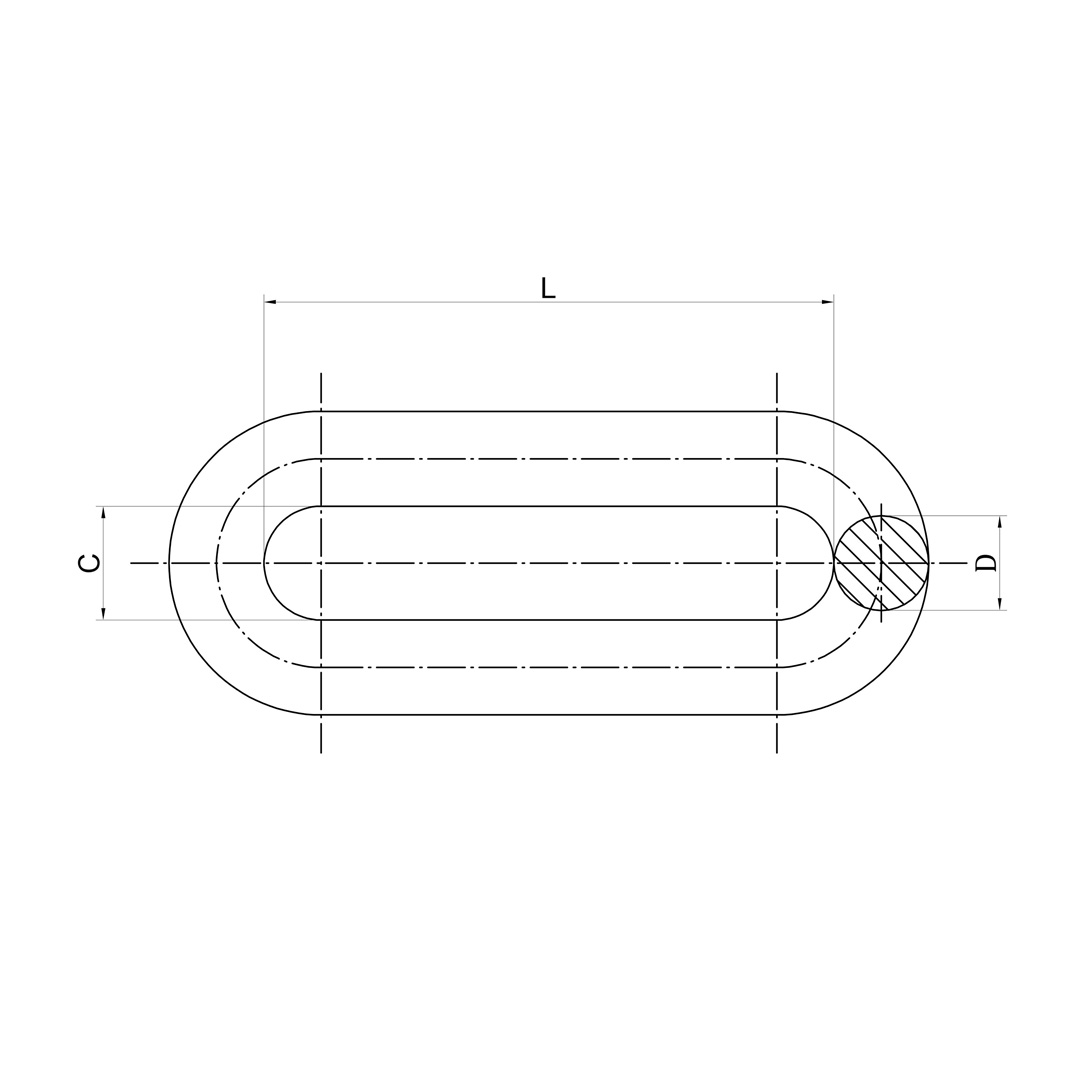

Remark: *C, *D, *L, please refer to related product drawings.
