Compression Type Al-Cu Terminal Connector

Compression Type Al-Cu Terminal Connector

Rich results on Google's SERP when searching for "Compression Type Al-Cu Terminal Connector"

The terminal connector is used for the connection among bus-bar, downlead, and electrical equipment (such as transformers, circuit breakers, transformers, isolating switches, etc.). The compression Al-Cu terminal connector adopts hydraulic construction.

Usage scenarios

Substation system

Technical features

  1. The resistance at both ends of the conductor joint of compression type Al-Cu terminal connector shall not be greater than the resistance of an equivalent length of the conductor;
  2. The temperature rise at the conductor’s joint shall not be greater than the temperature rise of the conductor;
  3. The current carrying capacity of the terminal connector shall not be less than the carrying capacity of the down lead;
  4. The current carrying capacity of the terminal connector shall not be less than the carrying capacity of the down lead.

Product advantages

  1. Copper and aluminum welding seams are complete, without porosity and cracks. The surface is smooth and flat without burrs;
  2. The connector made of aluminum;
  3. It has good electrical contact performance reduction;
  4. It is suitable for permanent connection.
Product enquire

Technical details

Catalog

No.

 Suitable Conductor Dimensions(mm)
Catalog

No.

 Diameter

(mm)

 b S D L a φ
SYG-120/7A 120/7 14.5 50 10 26 80 85 16.0
SYG-150/8A 150/8 16.0 50 10 30 90 85 17.5
SYG-150/20A 150/20 16.67 50 10 30 90 85 18.0
SYG-185/10A 185/10 18.0 50 10 32 90 85 19.5
SYG-185/25 185/25 18.9 50 10 32 90 85 20.5
SYG-210/10A 210/10 19.0 50 10 34 100 85 20.5
SYG-210/25A 210/25 19.98 50 10 34 100 85 21.5
SYG-240/30A 240/30 21.6 50 12 36 100 85 23.0
SYG-300/15A 300/15 23.01 63 12 40 110 105 24.5
SYG-300/20A 300/20 23.43 63 12 40 110 105 25.0
SYG-300/25 300/25 23.76 63 12 40 110 105 25.5
SYG-300/40 300/40 23.94 63 12 40 110 105 25.5
SYG-400/20A 400/20 26.91 63 13 45 120 105 28.5
SYG-400/25A 400/25 26.64 63 13 45 120 105 28.5
SYG-400/35A 400/35 26.82 63 13 45 120 105 28.5
SYG-400/50A 400/50 27.63 63 13 45 120 105 29.5
SYG-500/35A 500/35 30.0 80 16 52 130 105 31.5
SYG-500/45A 500/35 30.0 80 16 52 130 105 31.5
SYG-500/65A 500/65 30.96 80 16 52 130 105 32.5
SYG-630/45A 630/45 33.6 100 20 60 150 105 35.5
SYG-630/55A 630/55 34.32 100 20 60 150 105 36.0
SYG-630/80A 630/80 34.82 100 20 60 150 105 36.5
SYG-800/55A 800/55 38.4 125 22 65 170 130 40.0
SYG-800/70A 800/70 38.58 125 22 65 170 130 40.5
SYG-800/100A 800/100 38.98 125 22 65 170 130 40.5

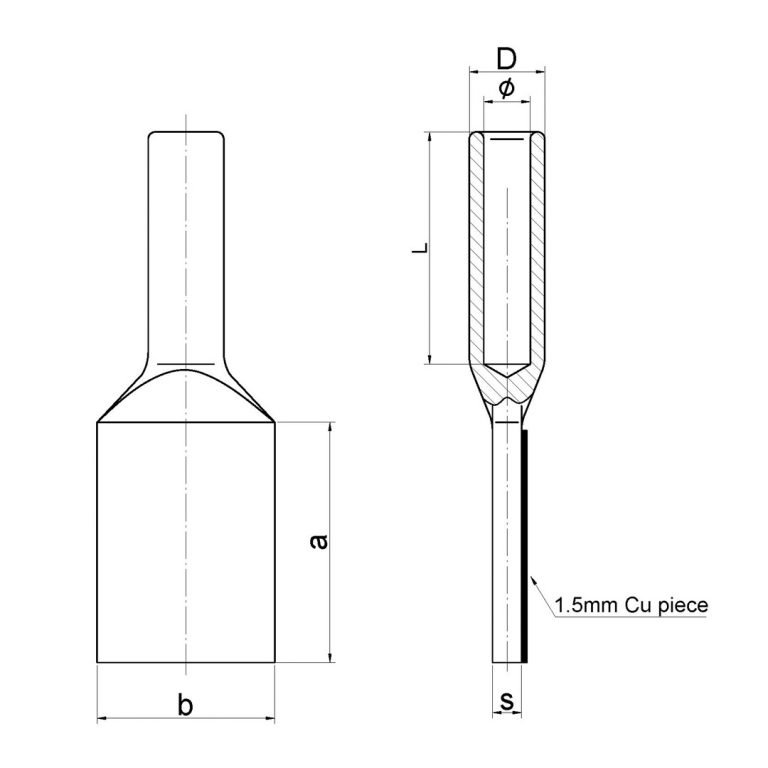

Remark:*b,*S,*D,*L,*a,*φ,please refer to related product drawings.
