Adjuster Plate

Adjuster Plate

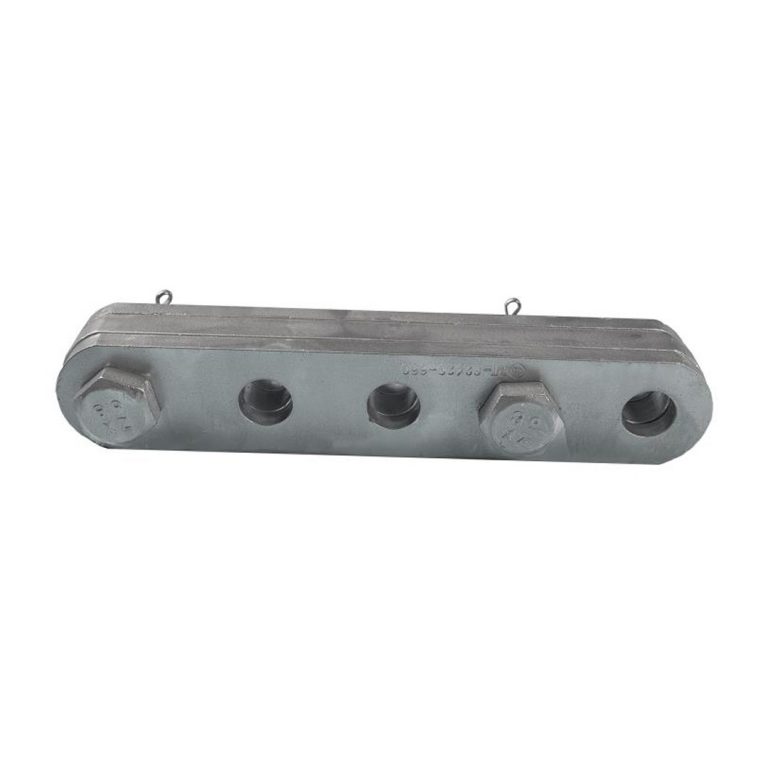

2-5-9Adjuster-Plate

Rich results on Google's SERP when searching for "Adjuster Plate"

Adjuster Plate is a connection fitting with adjustable length.

Usage scenarios

Transmission line system, communication system

Technical features

The adjuster plate is generally used on the tension insulator string to adjust the string length.

Product advantages

The adjuster plate uses hot-dip galvanizing to prevent corrosion;
The surface is smooth and free of burrs;
The mechanical strength of the adjuster plate is high.

Technical details

Catalog No.	Dimensions (mm)								Rated Failure Load (kN)
Catalog No.	L0	L1	L2	M	d	b	C	L	Rated Failure Load (kN)
PT-7	45	30	45	16	18	16	18	225-345	70
PT-10	50	40	50	18	20	16	20	250-390	100
PT-12	60	75	60	22	24	16	24	315-495	120
PT-16	65	50	65	24	26	18	26	325-505	160
PT-21	70	90	70	27	30	26	30	370-580	210
PT-25	80	90	80	30	33	30	34	420-660	250
PT-30	85	100	85	36	39	32	38	455-710	300
PT-50	70	80	100	42	45	38	40	740-1280	500
PT-60	90	80	100	48	51	42	44	820-1390	600
PT-21370-580	70	80	70	24	26	20	24	370-580	210
PT-25420-660	80	90	80	27	30	24	28	420-660	250
PT-32420-660	80	90	80	30	33	28	32	420-660	320
PT-42440-680	80	100	80	36	39	32	36	440-680	420
PT-55550-820	90	140	90	36	39	32	36	550-820	550
PT-64600-900	100	150	-	42	45	36	40	600-900	640
PT-84870-1310	110	215	100	48	51	36	44	870-1310	840
PT-110740-1180	110	150	110	52	55	40	48	740-1180	1100
PT-128800-1280	120	160	120	60	64	45	52	800-1280	1280
PT-168690-990	150	240	-	72	76	52	62	690-990	1680

Remark: *L0, *L1, *L2, *M, *d, *b, *C, *L, please refer to related product drawings.
