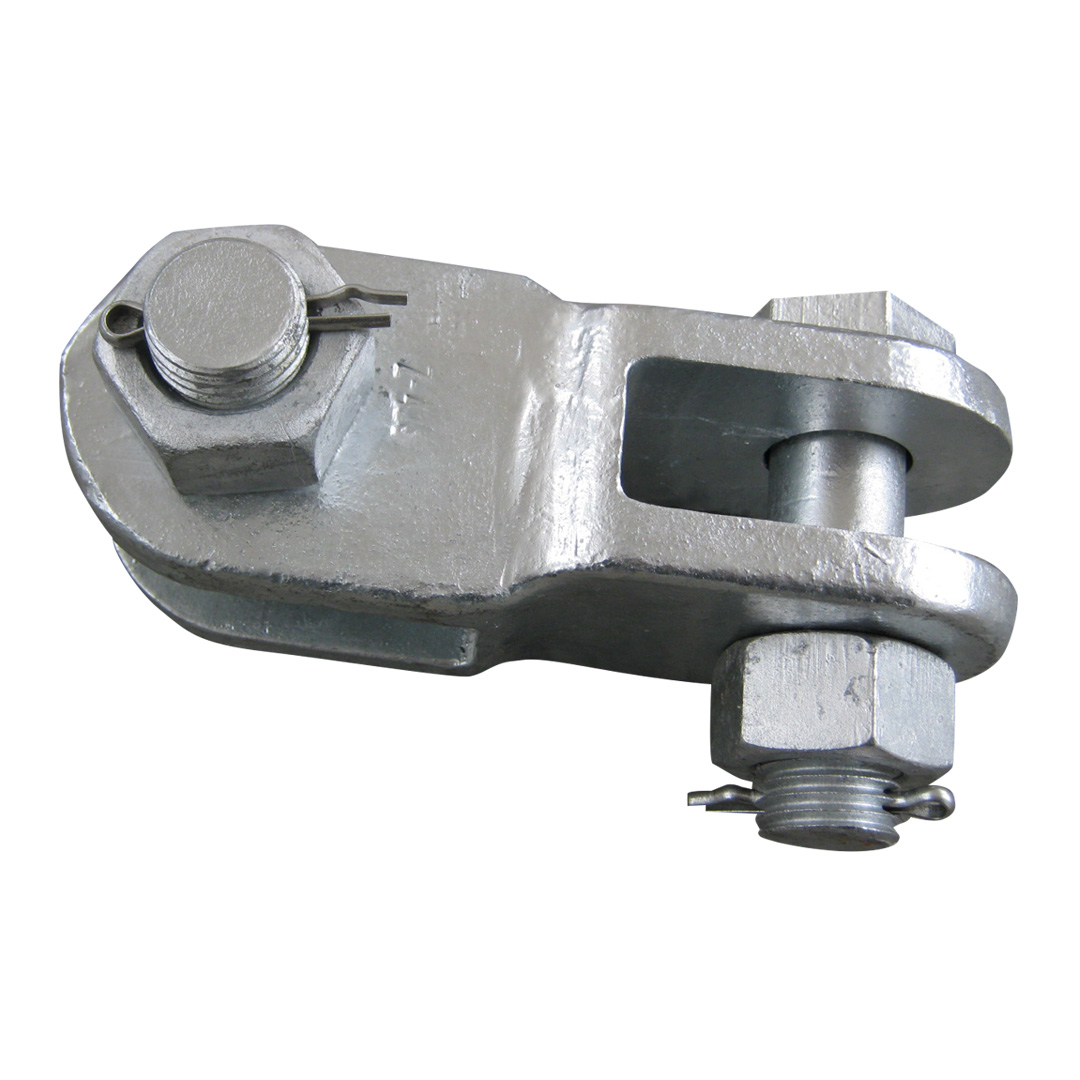

Clevises

Clevises is a steering connection fitting that changes the connection direction.

Usage scenarios

Transmission line system, communication system

Technical features

Since the connecting directions of the clevises are at right angles to each other, they are flexible and adaptable.

Product advantages

  1. The surface is smooth and free of burrs;
  2. The clevises uses hot-dip galvanizing to prevent corrosion;
  3. The mechanical strength of the clevises is high.

Technical details

Catalog No. Dimensions (mm) Rated Failure Load (kN)
C1 C2 M1 M2 h
Z-32135 32 32 30 30 135 320
Z-42150 36 36 36 36 150 420
Z-50 42 44 42 42 150 500
Z-60 40 40 42 42 180 600
Z-64180 40 40 42 42 180 640
Z-84S 44 44 48 48 180 840
Z-110220 48 48 52 52 220 1100
Z-128220 52 52 60 60 220 1280
Z-168260 62 62 72 72 260 1680

Remark: *C1, *C2, *M1, *M2, *h, please refer to related product drawings.
