Socket Clevis

Socket Clevis

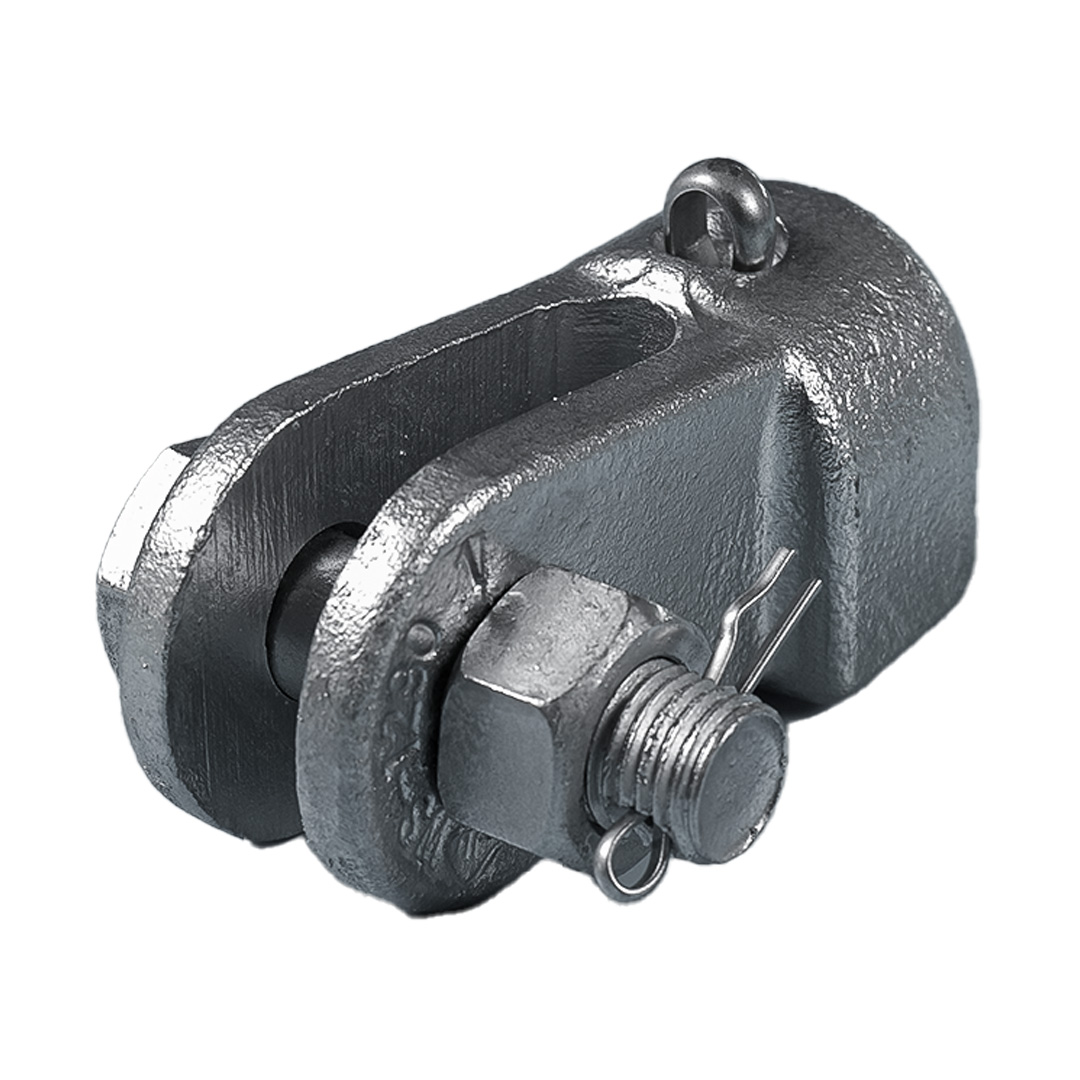

Socket Clevis is the fitting used for connection with the ball & socket insulator.

Usage scenarios

Transmission line system

Technical features

1. It uses hot-dip galvanizing to prevent corrosion;

2. It has a high failing load.

Product advantages

  1. It has no direction and can be turned;
  2. It is easy to load and unload.

Technical details



Catalog No.



Dimensions(mm) Rated Failure Load (kN) Designated size of coupling
C h d b
W-7TG 19.2 70 18 16 70 16
W-10TG 19.2 70 18 16 100 16
W-12TG 19.2 70 18 16 120 16
W-16TG 23 80 22 18 160 20
W-21TG 23 80 22 18 210 20

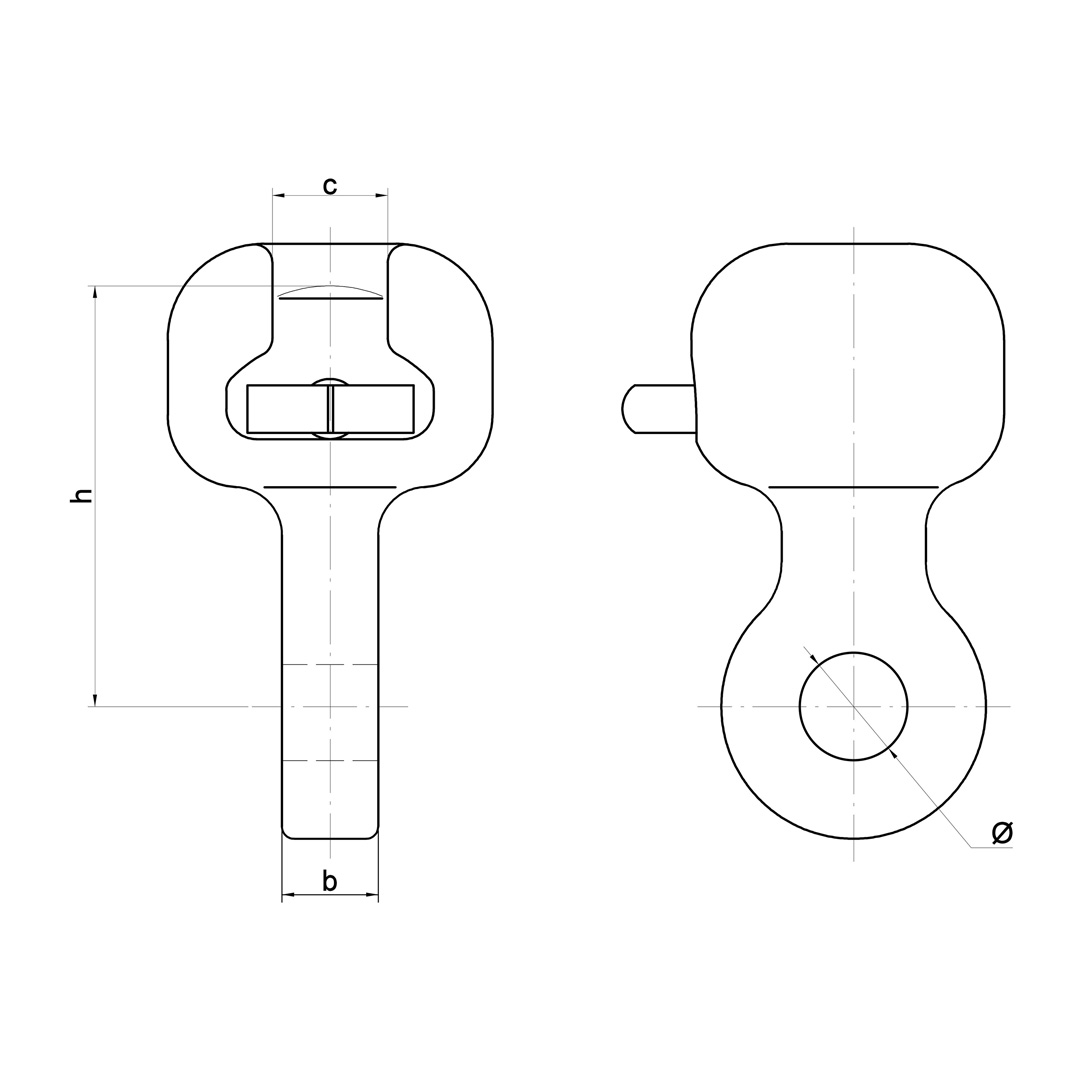

Remark: *C, *h, *d, *b, please refer to related product drawings.
