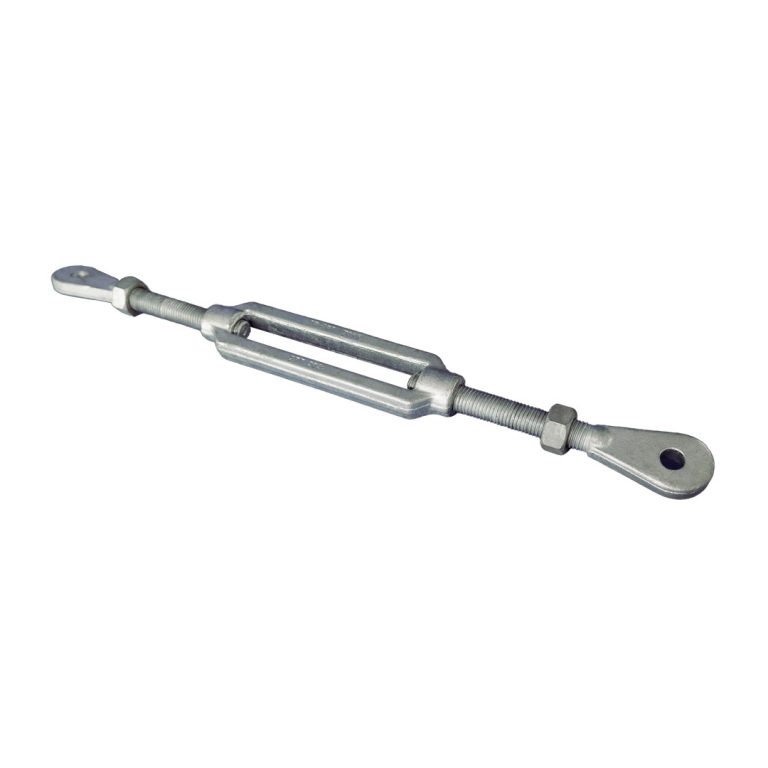

Turnbuckle

A connection fitting with adjustable length.

Usage scenarios

Transmission line system, communication system

Technical features

The turnbuckle is generally used on the tension insulator string to adjust the string length.

Product advantages

  1. The surface is smooth and free of burrs;
  2. The turnbuckle uses hot-dip galvanizing to prevent corrosion;
  3. The mechanical strength of the turnbuckle is high.

Technical details

Catalog No. Dimensions (mm) Rated Failure Load (kN)
d L L1 D b
TB-70ET 17.5 460-640 64 20 16 70
TB-120ET 17.5 460-640 64 20 16 120
TB-160ET 22.0 460-640 64 20 16 160
TB-210ET 22.0 460-640 64 20 19 210

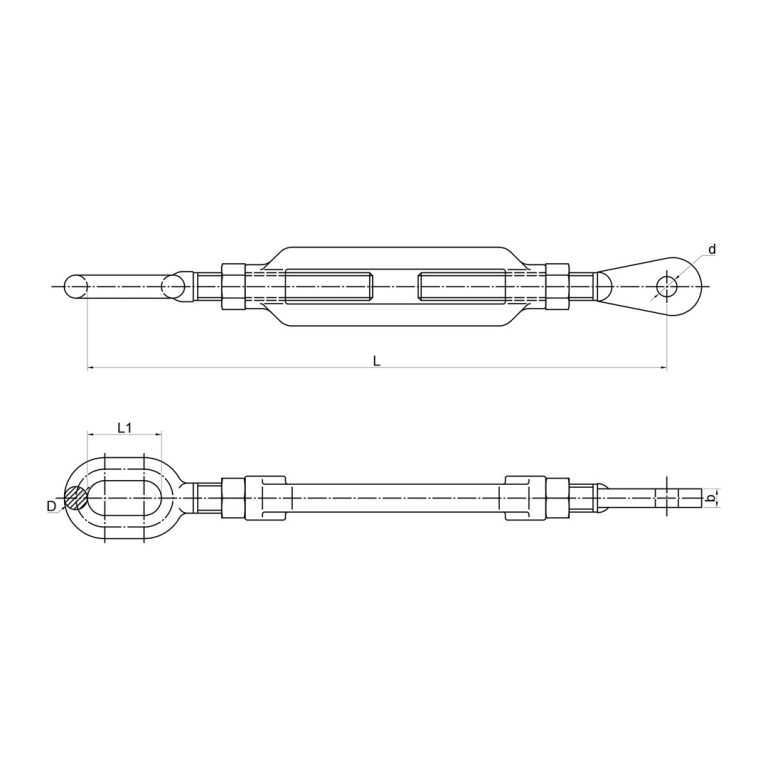

Remark: *d, *L, *L1, *D, *b, please refer to related product drawings.
